Vision Sport Power Wheelchair with Power Seat Lift — 300 lb Capacity
Mid-wheel drive power wheelchair with powered seat lift. 20" turning radius. Built for riders up to 300 lbs. Batteries included.
The Vision Sport with Power Seat Lift is a mid-wheel drive power wheelchair with a powered seat elevator that raises you up to 7.5 inches -- high enough to reach counters, sit at a table, or look someone in the eye during a conversation. Built for riders up to 300 lbs, it delivers the tightest turning radius in our power chair lineup at just 20 inches.
Available in two lift configurations: 7.5" lift (16"-18" seat widths) or 6.5" lift (16"-20" seat widths) -- same price either way. The semi-reclining captain's seat adjusts up to 135 degrees, and the seat depth is customizable from 16" to 20" for a tailored fit.
U1 batteries and 4A off-board charger included. Ships ready to use.
KEY FEATURES
Power Seat Lift Raises up to 7.5" -- reach kitchen counters, dining tables, and shelves without assistance
20" Turning Radius The tightest turning radius in our lineup -- navigates tight hallways, small kitchens, and bathrooms with ease
Adjustable Seating 16" to 20" seat widths, 16" to 20" seat depth, captain or pan seat, semi-reclining backrest up to 135 degrees
300 lb Weight Capacity Standard-duty frame for average-weight riders
Batteries Included Two U1 batteries and 4A off-board charger ship with the chair -- nothing extra to buy
Seat Lift at a Lower Price Same powered seat lift technology as our heavy-duty Vision Super, for less
Specifications
| Specification | Detail |
|---|---|
| Model | P326D2 (7.5" lift) / P326D0 (6.5" lift) |
| Weight Capacity | 300 lbs |
| Drivetrain | Mid-Wheel Drive (MWD) |
| Seat Lift Height | 7.5" (P326D2) or 6.5" (P326D0) |
| Seat Width | 16" or 18" (7.5" lift) / 16", 18", or 20" (6.5" lift) |
| Seat Depth | 16" - 20" (customizable) |
| Seat Type | Captain or Pan |
| Backrest Height | 20" |
| Seat-to-Floor Height | 20.5" - 29.5" (with lift range) |
| Overall Length | 34" |
| Overall Width | 24" |
| Overall Height | 48.5" |
| Turning Radius | 20" |
| Ground Clearance | 2" |
| Total Weight | 214 lbs |
| Weight of Heaviest Piece | 120 lbs |
| Max Speed | 5 mph |
| Range Per Charge | Up to 18 miles |
| Motor | DC 24V / 160W |
| Controller | P&G VR2 60A |
| Batteries | 2x 35Ah, 12V, U1 (included) |
| Charger | 4A off-board (included) |
| Gradient / Hill Climb | 6 degrees |
| Front Wheels | 6" solid |
| Drive Wheels | 10" solid / foam-filled |
| Rear Wheels | 6" solid |
| Color Options | Red or Black (7.5" lift) / Red or Blue (6.5" lift) |
| HCPCS Codes | K0823 + K0108/E2300 (7.5" lift) / K0831 / K0830 (6.5" lift) |
| Manufacturer | Merits Health Products |
| Assembled | USA |
What's in the Box?
- Vision Sport power wheelchair base with mid-wheel drive
- Power seat lift mechanism (7.5" or 6.5" depending on configuration)
- Captain seat with armrests (or pan seat -- specify when ordering)
- 2x 35Ah U1 batteries (installed)
- 4A off-board charger
- Owner's manual
Choosing your Lift Height
The Vision Sport with Lift comes in two configurations at the same price:
7.5" Lift (Model P326D2) -- Greater lift range for maximum reach. Available in 16" or 18" seat widths. Choose this if reaching counters and high surfaces is your priority and you don't need a seat wider than 18".
6.5" Lift (Model P326D0) -- Slightly less lift range, but available in 16", 18", or 20" seat widths. Choose this if you need a 20" wide seat or if 6.5" of lift is sufficient for your needs.
Not sure which is right? Call us and we'll help you decide based on your height, reach goals, and seat width needs.
Vision Sport vs Vision Super - Which do I need?
We carry two power wheelchairs with seat lifts. Here's how to choose:
Choose the Vision Sport if you weigh under 300 lbs, want the tightest possible turning radius (20"), and want a seat lift at a lower price point.
Choose the Vision Super if you weigh between 300 and 400 lbs, need a heavier-duty frame, want 10" of seat lift (vs. 6.5"-7.5"), and need larger batteries for longer range (20 miles vs. 18 miles).
The core difference is weight capacity and lift height. Everything else -- mid-wheel drive, indoor maneuverability, captain or pan seat options -- is shared across both chairs.
Who is this For?
This chair is built for you if:
- You weigh up to 300 lbs and want a power wheelchair with a seat lift
- You primarily use the chair indoors and need to navigate tight spaces
- You want to reach kitchen counters, dining tables, and shelves independently
- You want the seat lift feature without paying for a heavy-duty frame you don't need
- You want batteries included with no extra parts to source
This may not be the right fit if:
- You weigh over 300 lbs (see our Vision Super with Lift -- 400 lb capacity, 10" lift)
- You weigh over 400 lbs and don't need a seat lift (see our Atlantis -- 600 lb capacity)
- You need a chair primarily for outdoor or rough terrain use (see our Silverado Extreme)
- You need a folding or portable chair for travel (see our Feather Power Chair at 33 lbs)
- You need extended range beyond 18 miles per charge
Delivery Information
Free shipping on this product. Delivered via freight carrier to your address.
Delivery includes liftgate service to lower the chair to ground level at your location. Residential delivery included.
White Glove Delivery available for $499 -- we bring it inside, unpack it, and set it up for you.
Estimated delivery: Ships from manufacturer. Delivery timeframe will be confirmed when you place your order.
Note: You will receive a call from the freight carrier to schedule your delivery window.
FAQ
Does this chair come with batteries? Yes. Two U1 batteries ship installed. The 4A off-board charger is also included.
What's the difference between the 7.5" and 6.5" lift? The 7.5" lift (P326D2) raises the seat one inch higher but is only available in 16" or 18" seat widths. The 6.5" lift (P326D0) offers a 20" seat width option. Same price either way. If you need a 20" wide seat, go with the 6.5" lift. If you need maximum height reach, go with the 7.5" lift.
How high does the seat go? With the 7.5" lift, the seat rises from approximately 20.5" to about 28"-29.5". That's high enough to sit at a standard dining table comfortably and reach most kitchen counters.
Can I use this chair outdoors? On flat, smooth surfaces like sidewalks and driveways, yes. The 6" solid casters and 2" ground clearance are designed for indoor and smooth surface use. For outdoor primary use, see our Silverado Extreme scooter.
How tight can it turn? 20" turning radius -- the tightest in our power wheelchair lineup. It can turn in spaces most other power chairs cannot.
How far does it go on one charge? Up to 18 miles under optimal conditions. Real-world range depends on rider weight, terrain, lift usage, and speed.
How much does it weigh? 214 lbs total. The heaviest single piece is 120 lbs.
What colors are available? The 7.5" lift model comes in Red or Black. The 6.5" lift model comes in Red or Blue. Confirm your preference when ordering.
What's the difference between captain and pan seat? Captain seat has built-in armrests and contoured shape -- most people choose this. Pan seat is a flat platform for custom cushions specified by a therapist. If you're unsure, go with captain.
Why is this cheaper than the Vision Super? The Vision Sport uses a standard-duty frame (300 lbs vs 400 lbs), smaller batteries (35Ah U1 vs 55Ah 22NF), and a smaller motor (160W vs 300W). If you weigh under 300 lbs, you get the same seat lift functionality at a lower price without paying for heavy-duty capacity you don't need.
What if it needs service or repair? As an authorized Merits dealer, we can help coordinate warranty service and replacement parts. Contact us and we'll handle it.
About the Manufacturer
Medical Mobility Supply is an authorized Merits dealer.
Choose options
WHITE GLOVE DELIVERY
Delivered & set up with care
LIFETIME SUPPORT
We're here for you, always
FINANCING AVAILABLE
Flexible payment options
"I've been in a regular wheelchair for 6 years and this power chair changed everything. The joystick is so smooth and easy. I can go from room to room, outside, everywhere without asking my wife for help. Worth every single penny."
"After my stroke I lost strength in both legs. This chair has a power seat lift which helps me stand up safely without pulling on anyone. My physical therapist actually recommended this exact model. I feel human again."
"I weigh 340 lbs and finding a chair that fits me comfortably was nearly impossible. This one holds 400 lbs and the seat is wide and cushioned perfectly. Battery lasts all day. I use it everywhere — home, stores, outdoors."
"My daughter bought this for me after my second knee surgery. The delivery team set it all up and showed me every single button. I was driving it around the house the same day. My grandchildren love riding beside me on their bikes."
"The joystick control is incredible — so sensitive and responsive. I can turn in tight spaces, go through doorways easily, even navigate crowded stores. The power seat lift is a game changer for getting in and out safely."
"I have MS and my hands are weak. I was worried I couldn't operate a joystick but it is so light to touch. Barely any pressure needed. I drove it perfectly on my first try. This chair gave me back my independence completely."
"Bought the red color version and it looks fantastic. People compliment me on it everywhere I go. But more importantly it performs beautifully outdoors — rough pavement, ramps, small curbs, handles everything smoothly."
"My husband has Parkinson's and was falling constantly trying to walk. This chair stopped all of that. He uses it all day safely. The high back seat supports his posture perfectly. Our family feels so much safer now."
"The battery on this chair is incredible. I used it all day at a family outdoor event — probably 6 hours of constant use — and still had battery left at the end. Never once worried about running out. Absolutely reliable."
"I cried when this arrived. I haven't been able to go to church for 2 years because of my mobility. Last Sunday I drove myself in this chair and sat with my family. My pastor stopped the whole service to welcome me back. God bless this company."
TRUSTED BRANDS. PROVEN QUALITY.
Frequently Asked Questions
Everything you need to know before you order
How do I choose the right power wheelchair for my needs?
The best wheelchair depends on your weight capacity requirements, portability needs, and daily usage. Lightweight folding models like the Feather Power Chair are ideal for travel, while heavy-duty models such as the Atlantis and Vision Super Heavy-Duty chairs are designed for higher weight capacities and extended daily use.
What is the weight capacity of your power wheelchairs?
Our power wheelchairs support a range of user needs, with capacities from 250 lbs up to 600 lbs. Please check the specifications on each product page to find the model that best suits you.
Are your power wheelchairs airline and travel friendly?
Many of our wheelchairs are designed with travel in mind. The Feather Power Chair features a lightweight folding design that makes transportation and storage much easier. Always check airline requirements before traveling.
How long does the battery last on a full charge?
Battery performance varies by model, terrain, user weight, and driving conditions. Most users can expect several hours of continuous use on a full charge. Detailed battery specifications are available on each product page.
Does the wheelchair arrive fully assembled?
Most wheelchairs arrive mostly assembled and require only minimal setup before use. Clear instructions are included to help you get started quickly and safely.
What is a power seat lift, and which models include it?
A power seat lift allows users to raise or lower their seating position electronically for improved accessibility and comfort. The Vision Sport and Vision Super Heavy-Duty Power Wheelchairs include this convenient feature.
Do you offer a warranty on your power wheelchairs?
Yes. Our power wheelchairs are backed by manufacturer warranties for added peace of mind. Warranty coverage may vary by model, so please refer to the individual product page for details.
How long does shipping take?
Shipping times may vary depending on the wheelchair model and delivery location. Once your order is processed, you'll receive tracking information so you can monitor your shipment every step of the way.
Built for Power. Made for Freedom.
- Holds up to 400 lbs, built extra strong
- Power seat lift, stand up safely alone
- Smooth joystick anyone can use first try
- Huge padded seat for all-day comfort
- Handles indoors, outdoors and everywhere

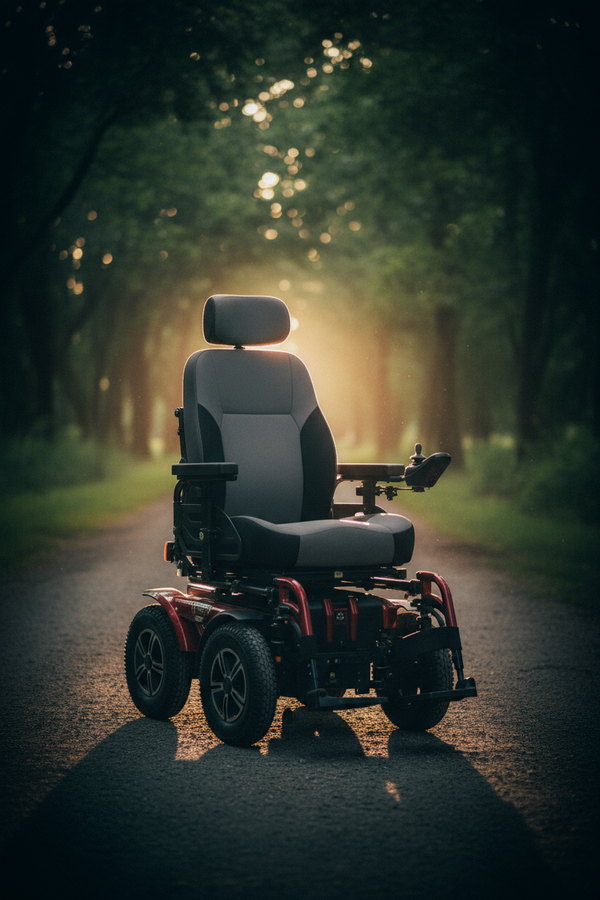

Go Anywhere
